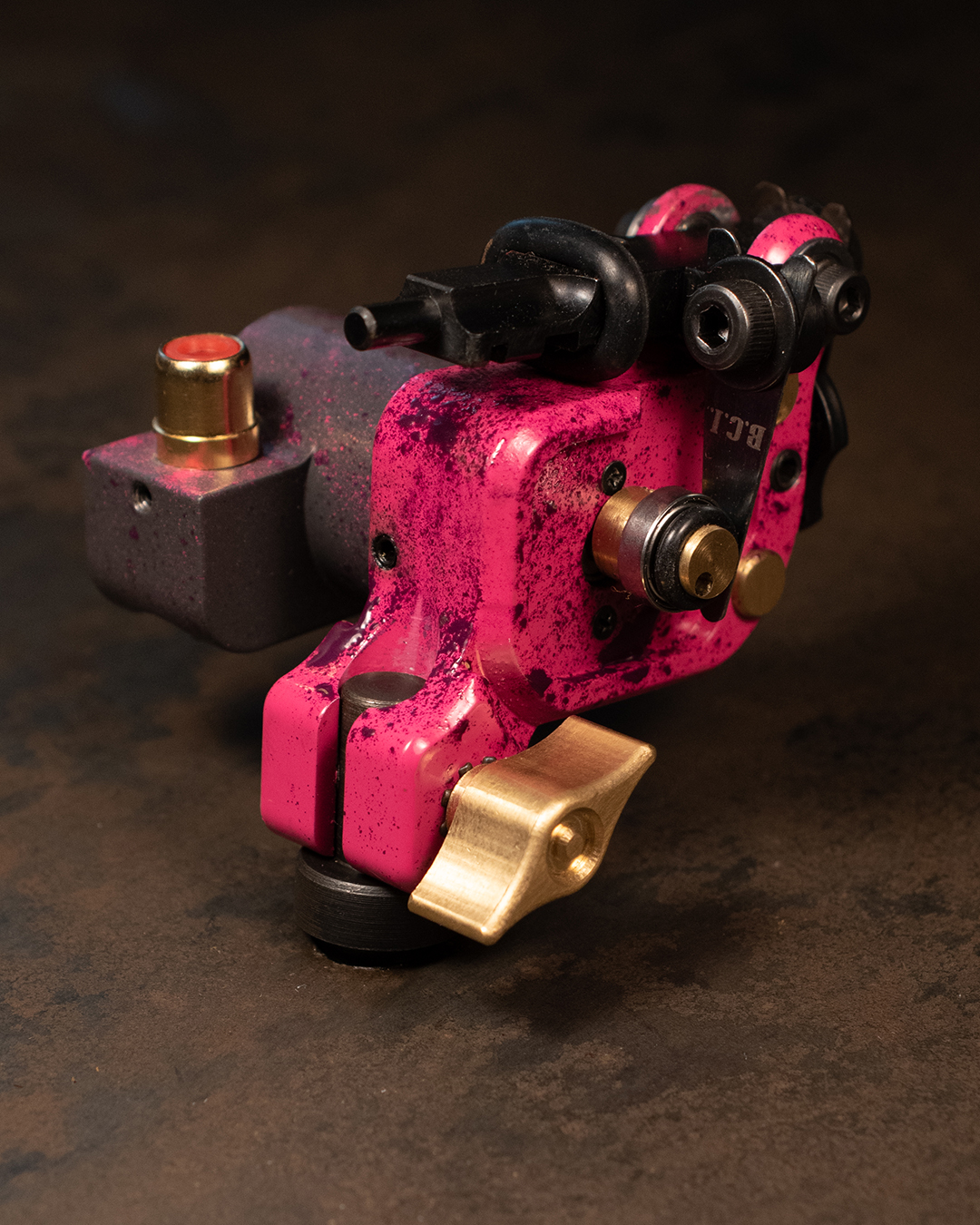

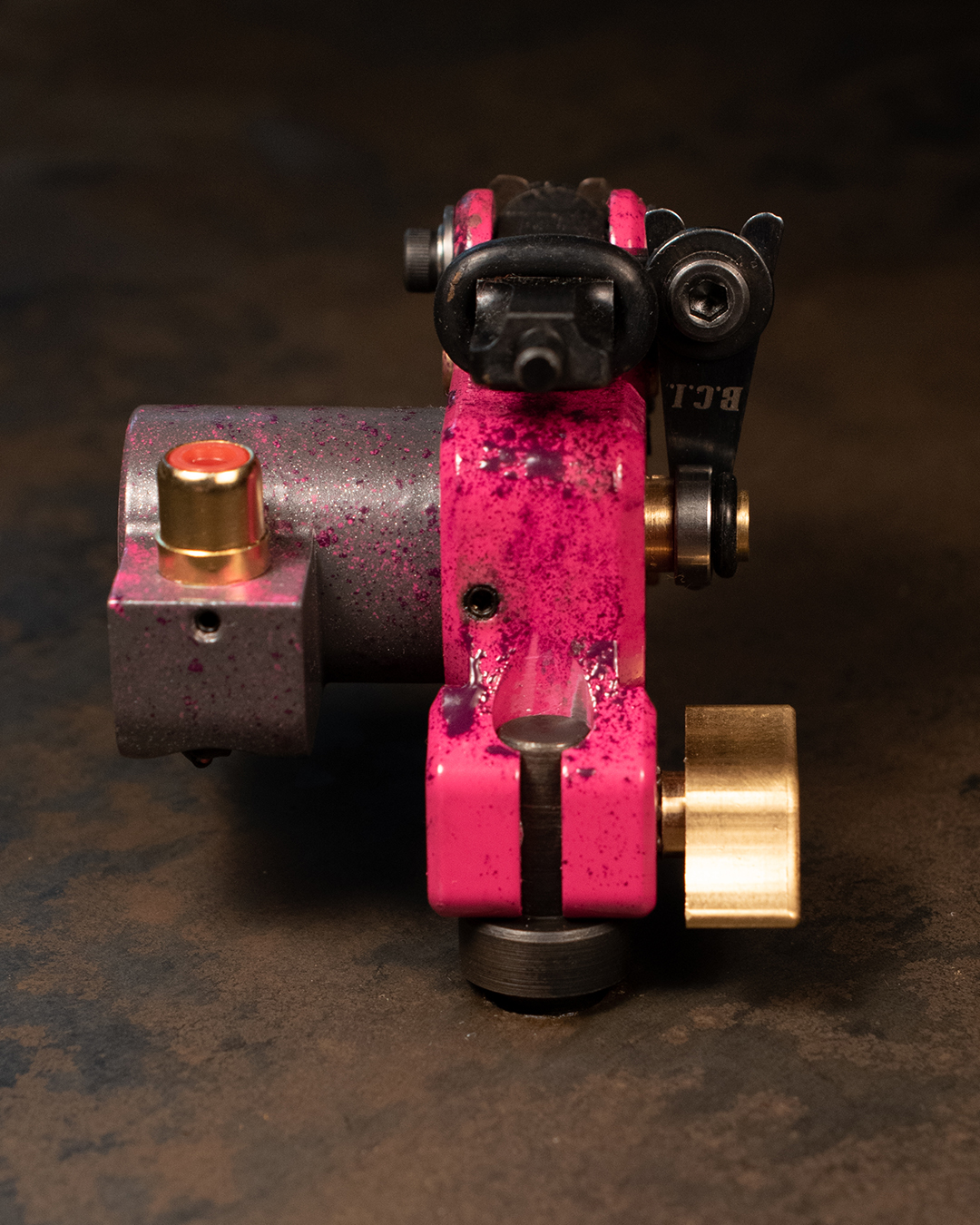

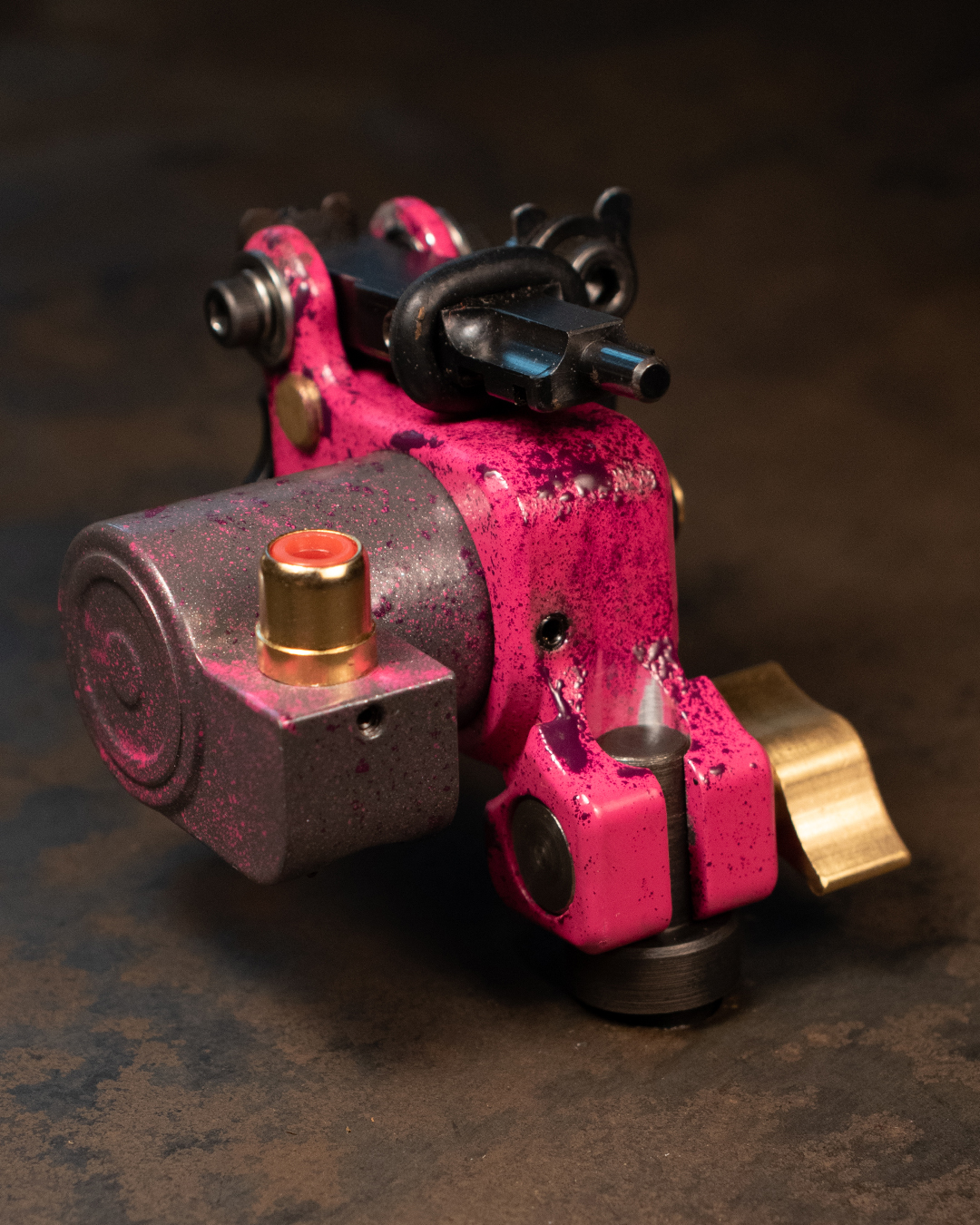

Inky v2 (light) – Pink splatter rca

For working with smaller to medium needle groups.
Setup for using with cartridge needles only, “Inky” is very versatile and will allow you to use a wide range of needles for both lining and shading by adjusting the voltage and stroke length. Compatible with battery for wireless tattooing.

This setup includes an o-ring on the armature bar that allows your machine to have three different settings by changing the impact screw settings.
1 – dis-engage the impact screw so that it no longer makes contact with the frame and the machine will have a soft hit with less noise
2 – engage the impact screw so that the o-ring makes contact just before the impact screw and the machine will have a medium hit
3 – engage the impact screw so that it makes contact with the frame before the o-ring and the machine will have the hardest hit

You can quickly and easily adjust the stroke by turning the knob on the rear of machine. Just loosen the locking screw on the left side with 2mm allen key and then turn the knob to the right to lengthen the stroke or to the left to shorten the stroke.

Inky (light) has been tuned for fine-line and soft shading with cartridge needles.

– Light weight aluminium frame
– Pink, grey and purple powder coated frame and motor cover
– Steel armature bar
– Weight 128 grams
– Adjustable stroke
– Voltage range 5V to 8V
– RCA connector
